High Quality Clay Bricks from Our Mobile Tunnel Kiln

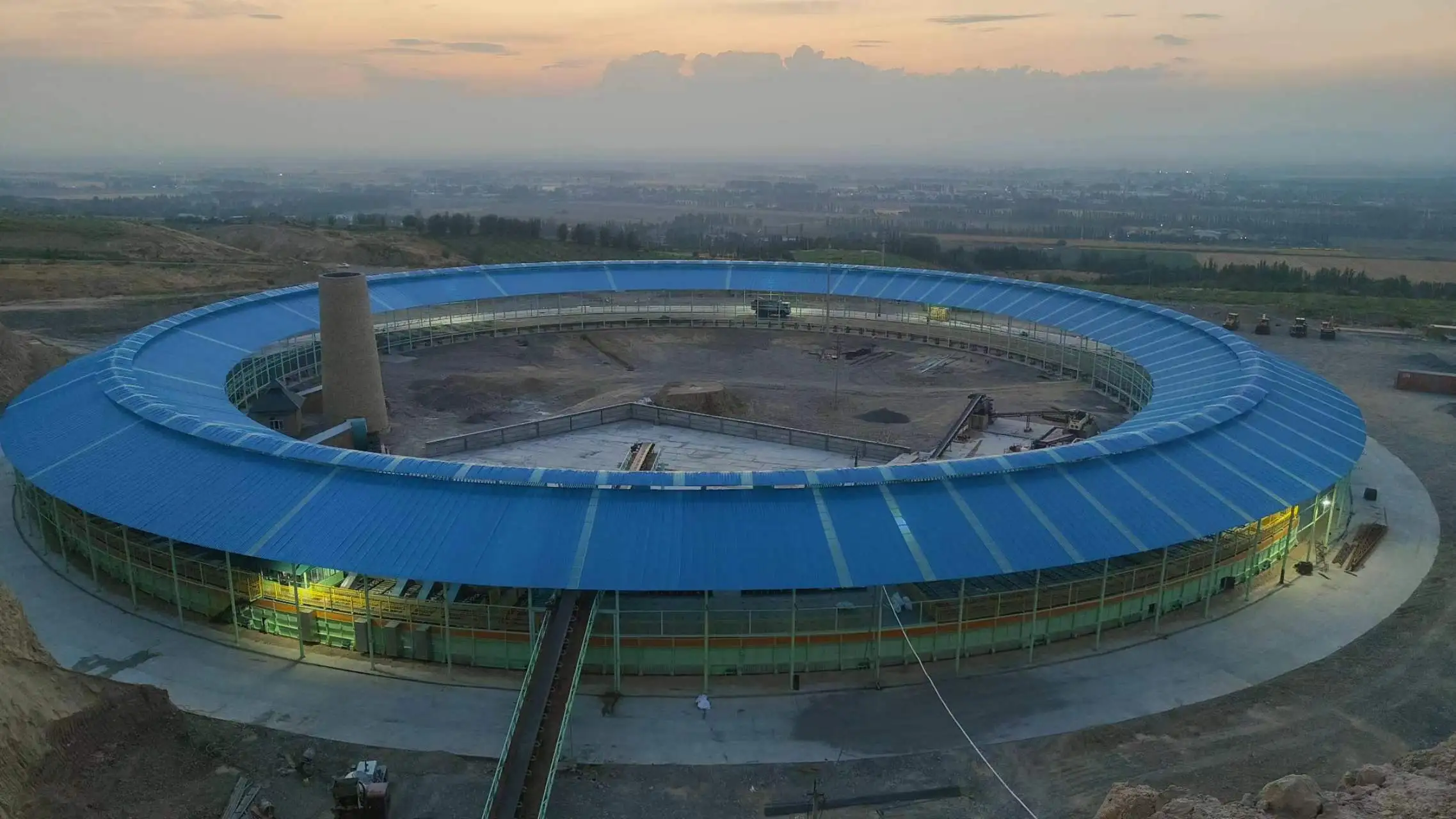

This short video was taken in South Africa second rotary mobile tunnel kiln. You can see that the quality of our rotary mobile kiln brick is very high.
Now our Mobile tunnel kiln is with lastest and most mature technology in China. Also we have done other mobile kiln in Middle Asia. Our air duct has more than 10 kinds of patents .
We are the first and only one kiln company to develop and establish new structure mobile rotary tunnel kiln of one small fan at the kiln top which can do better brick drying .If no any small fan on the top of kiln, the kiln will take more electricity and coal to dry and fire bricks. From our past years experience, if buyer does not build any fan on top of kiln, his kiln capacity will be reduced 20%.The small fan less 55 kw will not damage kiln or give negative infulence on kiln body life.
The mobile rotary kiln can be finished within 4 months. All the kiln parts of the kiln is prefabricated in standardized and large-scale production in factory by uniform specifications, and installed on the plant site.
Working Principle of Mobile Rotary Tunnel Kiln
The mobile rotary tunnel kiln works based on a continuous circular firing process.
Raw clay bricks are loaded onto kiln cars and enter the rotary kiln system. During operation, the kiln body rotates slowly, allowing bricks to pass through different temperature sections:
1. Preheating Zone
Waste heat from the firing zone is reused to gradually increase brick temperature, reducing thermal shock and improving energy utilization.
2. Firing Zone
High-temperature combustion is carried out using coal, gas, or other fuels. The temperature is accurately controlled to ensure complete brick sintering and achieve high strength.
3. Cooling Zone
The fired bricks are cooled gradually through controlled airflow, improving brick quality and reducing cracking problems.
The whole process is continuous, stable, and highly automated.
Product Advantages
1. No influence from weather conditions
The production process is not affected by seasonal climate changes.
2. Lower construction investment
No need for extremely long kiln buildings, reducing factory construction costs.
3. Labor saving
One worker can monitor and operate the kiln system with automation assistance.
4. High production efficiency
Continuous operation improves output and reduces downtime.
5. Easy maintenance
The modular design makes inspection and maintenance easier.
6. Energy saving and environmental protection
Efficient heat utilization reduces fuel consumption and emissions.
Technical Parameters:
|
Section width |
Capacity (pcs/day) Brick size: 240X115X53 mm |
| 5.2 m | 100,000~150,000 （Standard brick ） |
|
6.8 m |
150,000~200,000 （Standard brick ） |
|
8.8 m |
200,000~300,000 （Standard brick ） |
|
10.8m |
300,000~400,000 （Standard brick ） |
|
12.8 m |
400,000~500,000 （Standard brick ） |
|
16.8 m |
500,000~700,000 （Standard brick ） |
FAQ
Q1: What types of bricks can be produced by this kiln?
A : The mobile rotary tunnel kiln can produce various clay products, including:
- Solid bricks
- Hollow bricks
- Facing bricks
- Porous bricks
- Ceramic building bricks
Q2: How much energy does a rotary tunnel kiln consume?
A : The average energy consumption is approximately: 220–260 kcal/kg brick
The exact consumption depends on brick size, raw material moisture, fuel type, and production capacity.
Q3: Can this kiln operate automatically?
A : Yes. The system can be equipped with automatic temperature control, kiln monitoring, fuel control, and production management systems.
