China Best Mobile Tunnel Kiln for Clay Bricks Production
Our mobile tunnel kiln technology is best in China not only in kiln capacity ,but also in fuel consumption. Welcome to visit our running plant .

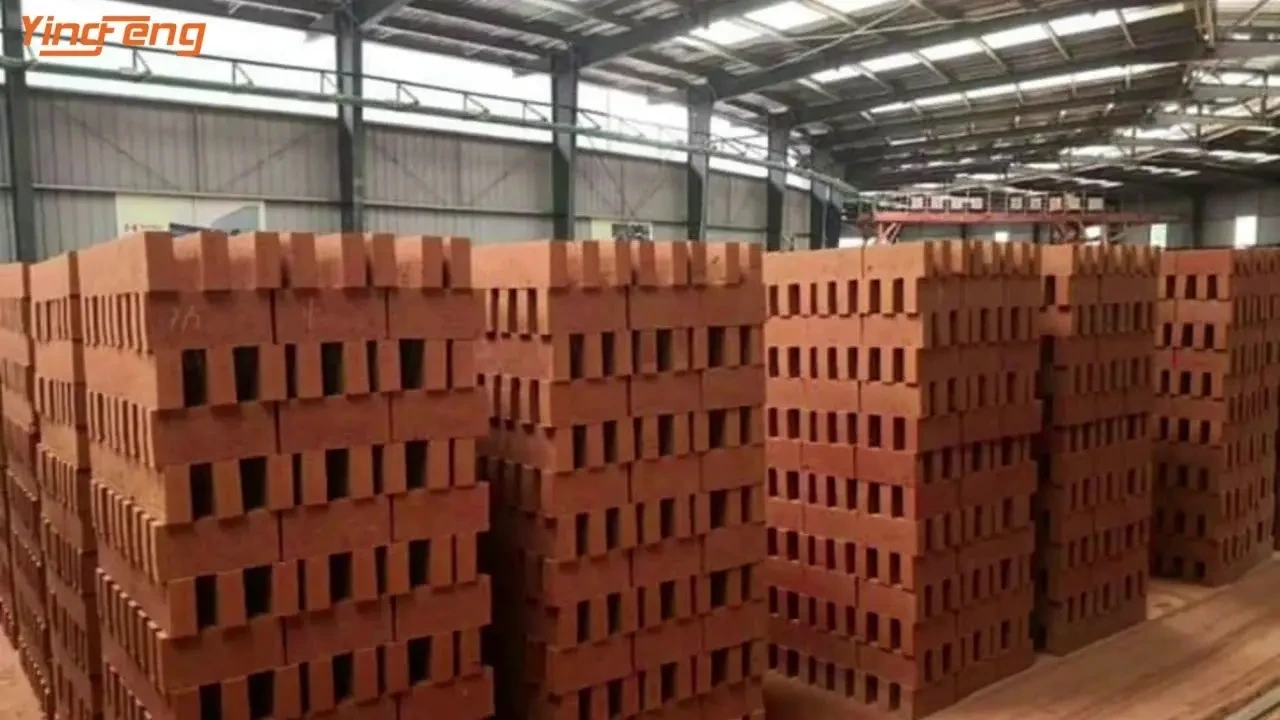

Our mobile tunnel kiln can fire solid bricks and hollow bricks.
Mobile Rotary tunnel kiln is improved and upgraded from traditional tunnel kiln.
Its biggest characteristic is the adobes stay still while the body of rotary kiln moves.
Kiln body are all steel structure,the circular orbit,once upon a time,in turn, divided into the dry period, preheating section, after roasting,cooling,heat preservation paragraphs. Machine and kiln body synthetic operation,iin order to characterize code. Rotation movement of the kiln body in orbit intermittent forward, front eat bricks, back end spit finished bricks,in turn ,drying, preheating,roasting,cooling,the whole process of bricks.
Advantages
- Drying and firing processes are unaffected by weather conditions.
- Reduces the cost of plastic covers for drying compared with the Hoffman kiln or clamp kiln.
- Cuts labor costs; only one worker is required for kiln operation.
- Delivers high output of qualified fired bricks, with a finished brick rate exceeding 99.8%.
- Lower maintenance costs than tunnel kilns, as no kiln cars are needed.
- Energy-saving versus tunnel kilns, with energy consumption of 220~260 kcal/kg.
More Intelligent Features
1. Real-time temperature & humidity monitoring and recording
2. High-precision vibration sensors are installed to continuously monitor the operating status of fans, enabling early detection of mechanical faults.
3. Online oil temperature monitoring for the core fan lubrication system prevents overheating damage and maintains stable equipment running.
4. Dynamically adjust the opening of servo air valves based on combustion demands to precisely match air supply and boost combustion efficiency.
Technical Parameters：
|
Section width |
Capacity (pcs/day) Brick size: 240X115X53 mm |
| 5.2 m | 100,000~150,000 （Standard brick ） |
|
6.8 m |
150,000~200,000 （Standard brick ） |
|
8.8 m |
200,000~300,000 （Standard brick ） |
|
10.8m |
300,000~400,000 （Standard brick ） |
|
12.8 m |
400,000~500,000 （Standard brick ） |
|
16.8 m |
500,000~700,000 （Standard brick ） |
