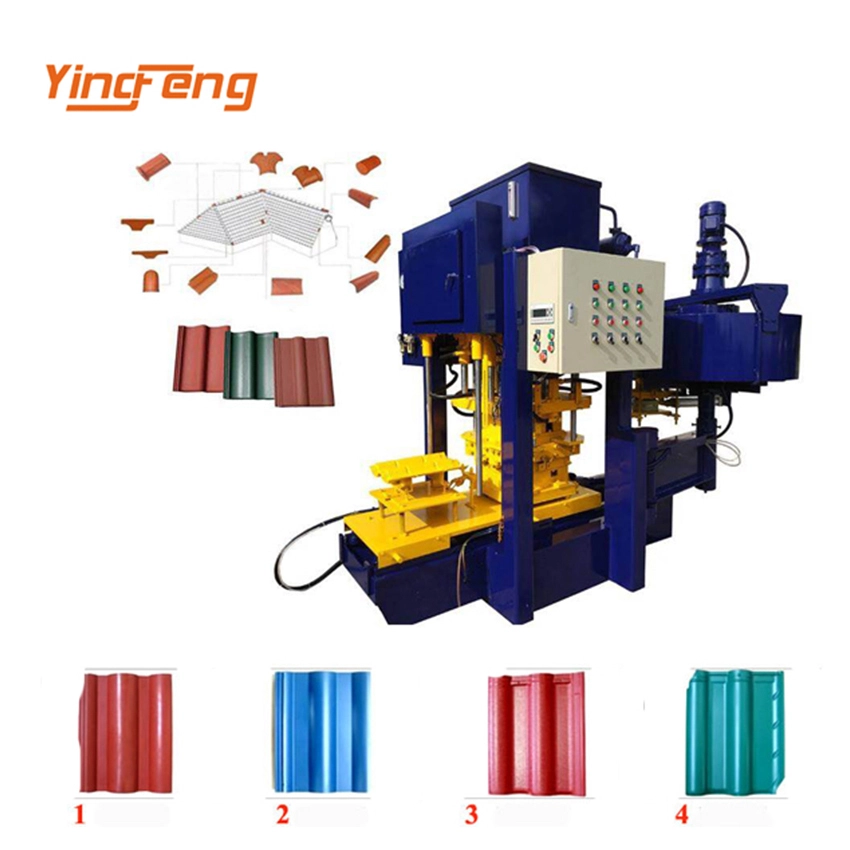

Yingfeng Machinery - Custom Professional Tile Forming Machine Cement Terrazzo Tile Machine Cement Roof Tile Making Machine Cement tile machine 1

Yingfeng Machinery - Custom Professional Tile Forming Machine Cement Terrazzo Tile Machine Cement Roof Tile Making Machine Cement tile machine

Name: Yingfeng Machinery - Custom Professional Tile Forming Machine Cement Terrazzo Tile Machine Cement Roof Tile Ma...
Brand: Yingfeng Machinery

Processed by competitive craft and produced by high-tech equipment,Custom Professional Tile Forming Machine Cement Terrazzo Tile Machine Cement Roof Tile Making Machine wins more favor from clients. And the finest material is conducive to its superior performance.

Customization:

Customized logo (Min. Order: 1 sets),Customized packaging (Min. Order: 1 sets),Graphic customization (Min. Order: 1 sets)

shipping:

Ocean freight

Inquiry

Write a Review

Since established, Zhengzhou Yingfeng Machinery Co., Ltd. has placed a great deal of emphasis on new product development.Brick making project, which is recently developed by us, will be officially sold at very competitive prices. The Tile Making Machinery product will supply to all over the world, such as Europe, America, Australia,Uganda , Oman ,Sri Lanka , Surabaya . Zhengzhou Yingfeng Machinery Co., Ltd. aims to become the most influential enterprise in the world. In order to achieve this goal, we will insist on introducing high-tech talents and learning international advanced technology, and strive to improve technical strength and gain the initiative in competition.

Applicable Industries:	Building Material Shops, Construction works	Showroom Location:	South Africa, Kyrgyzstan, Uzbekistan
Condition:	New	Type:	Tile Forming Machine
Tile Type:	CONCRETE	Use:	ROOF
Production Capacity:	9 pieces /min	Place of Origin:	Henan, China
Brand Name:	Yingfeng	Dimension(LWH):	310016002600 mm
Weight:	3000 kg	Warranty:	3 years
Key Selling Points:	Long Service Life	Rolling thinckness:	0.3-0.8mm
Feeding width:	Other	Machinery Test Report:	Provided
Video outgoing-inspection:	Provided	Marketing Type:	New Product 2020
Warranty of core components:	3 years	Core Components:	Bearing, Gear, Gearbox
Product name:	Cement tile machine	After Warranty Service:	Video technical support

Product Introduction

1.High-speed of forming, high output and reliable performance.Using PLC (Mitsubishi technology) automatic control, hydraulic pneumatic, the production speed can be up to 6-8 pieces/min and reach a high yield and a better cost performance.

2.Products are formed by filtration mould pressure.With the advantages of beautiful structure, various types, high density, strong strength and precise size, they can meet the demands of various types of buildings and are top quality of concrete products.

3.A multi-purpose machine.Through replacing mould, the machine can produce various types of main tile and matching tiles

Tile sample

Parameter	SMY8-128	SMY8-180
Rated pressure	128 t	220 t
Production capacity	6-9 pcs/min	6-9 pcs/min
Forming method	Mould pressing	Mould pressing
Power	18 KW	18 KW
Product size	424*337 mm	424*337 mm
Dimension	310016002600 mm	310016002600 mm
Worker	4 pcs/shift	4 pcs/shift

Production Line Composition

NO.	Name	Qty.
1	Main forming machine	1 set
2	Lifting and mixing system	1 set
3	Main tile mould	1 set
4	Main tile pallet	2000 set
5	Round ridge tile manufacturing machine	1 set
6	Round ridge tile pallet	50 pc
7	Cornice tile manufacturing machine	1 set
8	Cornice tile pallet	30 pc
9	Drain tile mould	1 pc
10	T three-way round ridge	1 pc
11	Y three-way round ridge	1 pc
12	Four-way mould	1 pc
13	Round ridge seal	1 pc
14	Cornice seal	1 pc
15	Oblique ridge seal	1 pc

List of ingredients

Raw material	Specification	Qty(kg)	Remark
Cement	425#	50
Sand	Coarse sand and fine sand	80-100	Sand degree(<=10%)
Pigment	Iron oxide	1.5

Step 1:dry-mixing raw material 5 minutes
Step 2:mixing raw material with water 5-10 minutes
( Note: sand : cement = 1.8 : 1, 50kg cement can produce 31-34 pieces tiles )

More tiles samples
