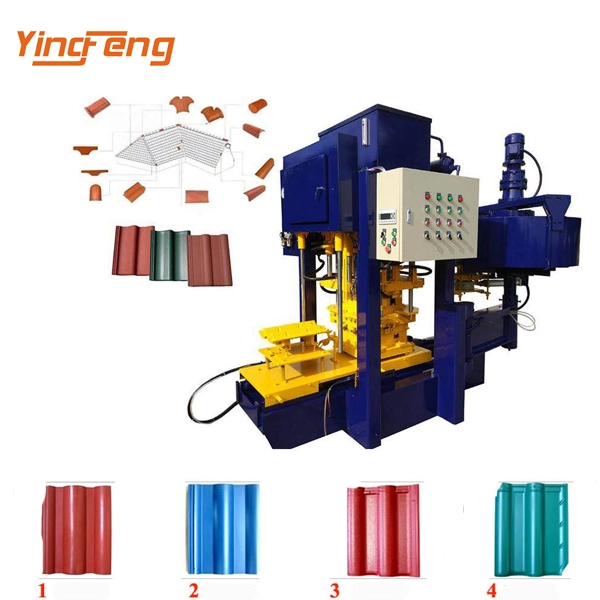

Yingfeng Machinery - Factory Directly Sell Automatic Roof Tiles Making Machine Cement Ceramic Tiles Making Machinery Price Cement tile machine

Yingfeng Machinery has a collection of Factory Directly Sell Automatic Roof Tiles Making Machine Cement Ceramic Tiles Making Machinery Price available from manufacturers around the world so if you'd like to buy some, do give a look. It is designed to cater to the changing demands and requisites of customers. Looking back to the good old days,Zhengzhou Yingfeng Machinery Co., Ltd. have done our best to achieve our goal of serving customers with the best quality products and services. In the future, we will keep improving our capabilities and upgrading technologies to provide more and better products to satisfy the growing needs of customers.

Product Introduction

1.High-speed of forming, high output and reliable performance.Using PLC (Mitsubishi technology) automatic control, hydraulic pneumatic, the production speed can be up to 6-8 pieces/min and reach a high yield and a better cost performance.

2.Products are formed by filtration mould pressure.With the advantages of beautiful structure, various types, high density, strong strength and precise size, they can meet the demands of various types of buildings and are top quality of concrete products.

3.A multi-purpose machine.Through replacing mould, the machine can produce various types of main tile and matching tiles

Tile sample

Parameter	SMY8-128	SMY8-180
Rated pressure	128 t	220 t
Production capacity	6-9 pcs/min	6-9 pcs/min
Forming method	Mould pressing	Mould pressing
Power	18 KW	18 KW
Product size	424*337 mm	424*337 mm
Dimension	3100*1600*2600 mm	3100*1600*2600 mm
Worker	4 pcs/shift	4 pcs/shift

Production Line Composition

NO.	Name	Qty.
1	Main forming machine	1 set
2	Lifting and mixing system	1 set
3	Main tile mould	1 set
4	Main tile pallet	2000 set
5	Round ridge tile manufacturing machine	1 set
6	Round ridge tile pallet	50 pc
7	Cornice tile manufacturing machine	1 set
8	Cornice tile pallet	30 pc
9	Drain tile mould	1 pc
10	T three-way round ridge	1 pc
11	Y three-way round ridge	1 pc
12	Four-way mould	1 pc
13	Round ridge seal	1 pc
14	Cornice seal	1 pc
15	Oblique ridge seal	1 pc

List of ingredients

Raw material	Specification	Qty(kg)	Remark
Cement	425#	50
Sand	Coarse sand and fine sand	80-100	Sand degree(<=10%)
Pigment	Iron oxide	1.5

Step 1:dry-mixing raw material 5 minutes
Step 2:mixing raw material with water 5-10 minutes
( Note: sand : cement = 1.8 : 1, 50kg cement can produce 31-34 pieces tiles )

More tiles samples

Related Products

Why Choose Us

FAQ

Q: What kinds of tile machine you can supply ?

A: We can supply clay roof tile machine, concrete roof tile making machine . We have both semi auto and full auto tile press machine .

Q: Does concrete roof tile need to fire ?

A：No, concrete roof tile no need to fire ,after drying 1~2 days by natural ,concrete tile can be packed .

Q: What is the process for making concrete roof tile ?

A:Raw material mixing --- roof tile pressing--- Tile drying---Finished roof tile.
