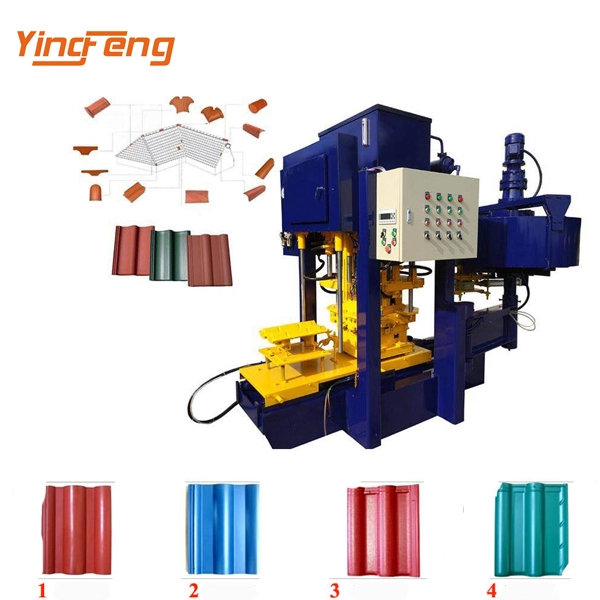

Yingfeng Machinery - Concrete Terrazzo Ceramic Moulding Cement Concrete Clay Ceramic Tiles Machine Maker Cement tile machine
We provide Concrete Terrazzo Ceramic Moulding Cement Concrete Clay Ceramic Tiles Machine Maker that withstand latest industrial demands and meet highest quality and safety measure to ensure long lasting support, durability and efficient performance. These are used in daily routine productions and manufacturing and is a need for all industries.
5.0
Customization:
Customized logo (Min. Order: 1 sets),Graphic customization (Min. Order: 1 sets),Customized packaging (Min. Order: 1 sets)
shipping:
Express Ocean freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Zhengzhou Yingfeng Machinery Co., Ltd. has been one of the market leaders due to providing high-quality products to clients and it is very possible for the company to achieve a greater advancement in the future. Through the application of technology, Zhengzhou Yingfeng Machinery Co., Ltd. have mastered the most efficient and labor-saving method to manufacture the product.It is its wide and effective performance that contributes to its wide uses in the application fields of Tile Making Machinery. Our featured Concrete Terrazzo Ceramic Moulding Cement Concrete Clay Ceramic Tiles Machine Maker providers ensure top quality product that will be ideal for all kinds of applications.
| Applicable Industries: | Construction works | Showroom Location: | Bangladesh |
| Condition: | New | Type: | Tile Forming Machine |
| Tile Type: | Cement | Use: | ROOF |
| Production Capacity: | 10000~12000/ 8 hrs | Place of Origin: | Henan, China |
| Brand Name: | Yingfeng | Weight: | 70 kg |
| Warranty: | 3 years | Key Selling Points: | Long Service Life |
| Rolling thinckness: | Other | Feeding width: | Other |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 3 years |
| Core Components: | Bearing, Gear, Gearbox | After-sales Service Provided: | Engineers available to service machinery overseas |
| Tile type: | concrete root tile and floor tile | After Warranty Service: | Video technical support |
| Local Service Location: | South Africa | Certification: | ISO9001 |
Product Introduction
1.High-speed of forming, high output and reliable performance.Using PLC (Mitsubishi technology) automatic control, hydraulic pneumatic, the production speed can be up to 6-8 pieces/min and reach a high yield and a better cost performance.
2.Products are formed by filtration mould pressure.With the advantages of beautiful structure, various types, high density, strong strength and precise size, they can meet the demands of various types of buildings and are top quality of concrete products.
3.A multi-purpose machine.Through replacing mould, the machine can produce various types of main tile and matching tiles
2.Products are formed by filtration mould pressure.With the advantages of beautiful structure, various types, high density, strong strength and precise size, they can meet the demands of various types of buildings and are top quality of concrete products.
3.A multi-purpose machine.Through replacing mould, the machine can produce various types of main tile and matching tiles
Tile sample
Parameter | SMY8-128 | SMY8-180 |
Rated pressure | 128 t | 220 t |
Production capacity | 6-9 pcs/min | 6-9 pcs/min |
Forming method | Mould pressing | Mould pressing |
Power | 18 KW | 18 KW |
Product size | 424*337 mm | 424*337 mm |
Dimension | 3100*1600*2600 mm | 3100*1600*2600 mm |
Worker | 4 pcs/shift | 4 pcs/shift |
Production Line Composition
NO. | Name | Qty. |
1 | Main forming machine | 1 set |
2 | Lifting and mixing system | 1 set |
3 | Main tile mould | 1 set |
4 | Main tile pallet | 2000 set |
5 | Round ridge tile manufacturing machine | 1 set |
6 | Round ridge tile pallet | 50 pc |
7 | Cornice tile manufacturing machine | 1 set |
8 | Cornice tile pallet | 30 pc |
9 | Drain tile mould | 1 pc |
10 | T three-way round ridge | 1 pc |
11 | Y three-way round ridge | 1 pc |
12 | Four-way mould | 1 pc |
13 | Round ridge seal | 1 pc |
14 | Cornice seal | 1 pc |
15 | Oblique ridge seal | 1 pc |
List of ingredients
Raw material | Specification | Qty(kg) | Remark |
Cement | 425# | 50 | |
Sand | Coarse sand and fine sand | 80-100 | Sand degree(<=10%) |
Pigment | Iron oxide | 1.5 |
Step 1:dry-mixing raw material 5 minutes
Step 2:mixing raw material with water 5-10 minutes
( Note: sand : cement = 1.8 : 1, 50kg cement can produce 31-34 pieces tiles )
Step 2:mixing raw material with water 5-10 minutes
( Note: sand : cement = 1.8 : 1, 50kg cement can produce 31-34 pieces tiles )
More tiles samples
Related Products
Why Choose Us
Related Products
Q: What kinds of tile machine you can supply ?
A: We can supply clay roof tile machine, concrete roof tile making machine . We have both semi auto and full auto tile press machine .
Q: Does clay roof tile need to fire ?
A：Yes, clay roof tile need to dry first then put in local oven to fire .
Q: What is the process for making clay roof tile ?
A: Raw material processing --- Mud pieces extruding --- Green roof tile pressing--- Tile drying---Tile firing---Finished roof tile
