China Mobile Tunnel Kiln With Most Mature Technology
Our Mobile tunnel kiln adopts negative moisture exiting, and the top of the kiln is installed with one small blower for more precision drying temperature controlling.
Our Mobile tunnel kiln adopts negative moisture exiting, and the top of the kiln is installed with one small blower for more precision drying temperature controlling.

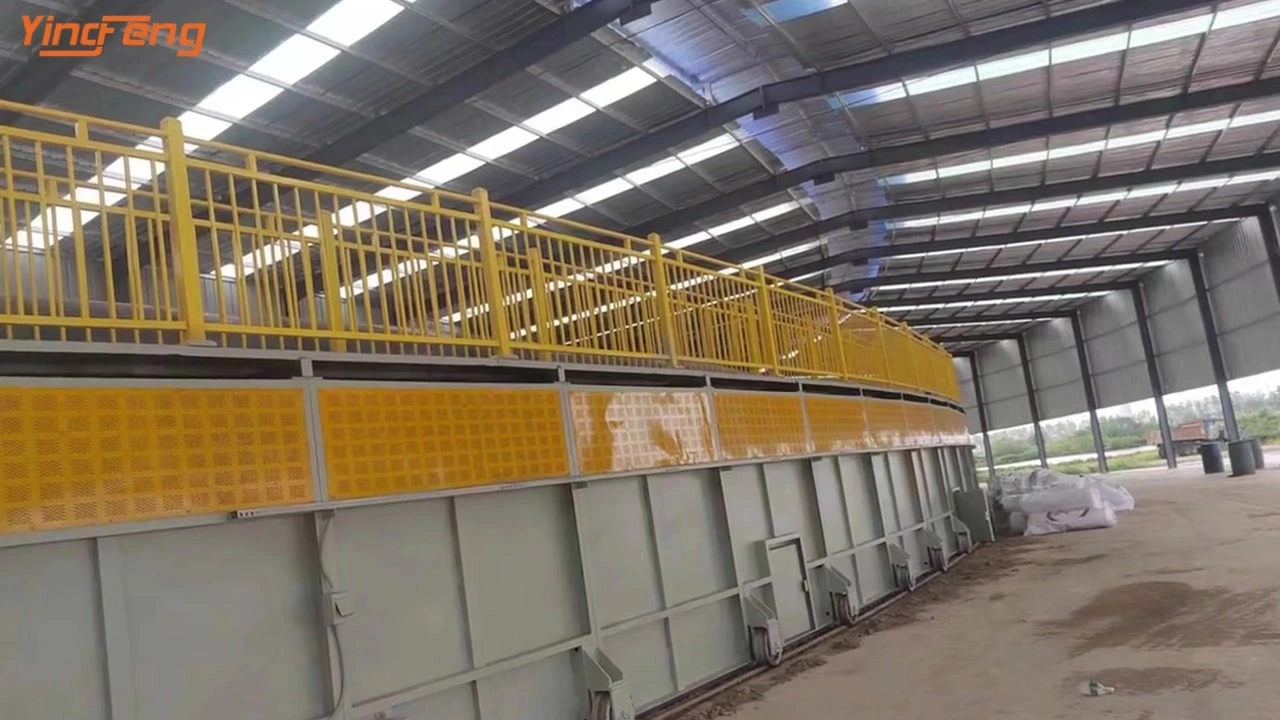

Mobile Rotary tunnel kiln is improved and upgraded from traditional tunnel kiln.
Its biggest characteristic is the adobes stay still while the body of rotary kiln moves.
Kiln body are all steel structure,the circular orbit,once upon a time,in turn, divided into the dry period, preheating section, after roasting,cooling,heat preservation paragraphs. Machine and kiln body synthetic operation,iin order to characterize code. Rotation movement of the kiln body in orbit intermittent forward, front eat bricks, back end spit finished bricks,in turn ,drying, preheating,roasting,cooling,the whole process of bricks.
Advantages:
1. Drying and firing won be influenced by weather condition
2. Saving drying plastic cover costs compared with hoffman or clamp kiln
3. Saving labor costs ,only need 1 labor to operate the kiln.
4. Can get more finished bricks with more than 99.8% finished brick rate
5. Less maintenance costs without kiln cars compared with tunnel kiln
6. Saving enery compared with tunnel kiln ,energy consumption is 220 ~260 kcal/kg
Why choose us ?
Our rotary kiln insulation cotton adopts China famous brand LUYANG.
Super drying technology: Reasonable technology design in air ducts. Kiln top one blower making air blow
and temperature control much easily.
The kiln wheels adopt heat treatment technology which makes wheels more durable.
Technical Parameters：
| Section width | Capacity (pcs/day) | Bricks size: 240×115×53 mm |
| 5.2 m | 100,000–150,000 | (Standard brick) |
| 6.8 m | 150,000–200,000 | (Standard brick) |
| 8.8 m | 200,000–300,000 | (Standard brick) |
| 10.8 m | 300,000–400,000 | (Standard brick) |
| 12.8 m | 400,000–500,000 | (Standard brick) |
| 16.8 m | 500,000–700,000 | (standard brick) |
