More than 30 years experience in clay brick making machine and rotary tunnel kiln.

Yingfeng Machinery - Auto High Precision Construction Concrete Cement Brick Block Compressive Strength Pressure Test Machine Pressure test machine 1
Yingfeng Machinery - Auto High Precision Construction Concrete Cement Brick Block Compressive Strength Pressure Test Machine Pressure test machine 1

Yingfeng Machinery - Auto High Precision Construction Concrete Cement Brick Block Compressive Strength Pressure Test Machine Pressure test machine

We use chemically-stable and environmental-friendly raw materials to manufacture the Auto High Precision Construction Concrete Cement Brick Block Compressive Strength Pressure Test Machine.Therefore, it is excellent in stable performance and totally safe for users. In addition, it is excellent performance making it highly practical in many fields and valuable.
5.0
Customization:
Customized packaging (Min. Order: 1 sets),Graphic customization (Min. Order: 1 sets),Customized logo (Min. Order: 1 sets)
design customization

    oops...!

    no product data.

    Go to homepage

    After years of painstaking research, Zhengzhou Yingfeng Machinery Co., Ltd.’s technicians have successfully developed Auto High Precision Construction Concrete Cement Brick Block Compressive Strength Pressure Test Machine. Auto High Precision Construction Concrete Cement Brick Block Compressive Strength Pressure Test Machine is of high quality and moderate price, so you can buy with confidence. Following scientific and advanced production standards, we have successfully made Auto High Precision Construction Concrete Cement Brick Block Compressive Strength Pressure Test Machine excellent in its performance. Through multiple times of tests, the Brick making project is proved to be of great and so on. Before its launch, it has passed the certifications of several international and national authorities.

    Warranty:1yearsCustomized support:OEM
    Place of Origin:Henan, ChinaBrand Name:Yingfeng
    Model Number:YES 1000Power:1.1 KW
    Product name:pressure test machineModel:YES 1000
    Certification:GS

    Product Introduction

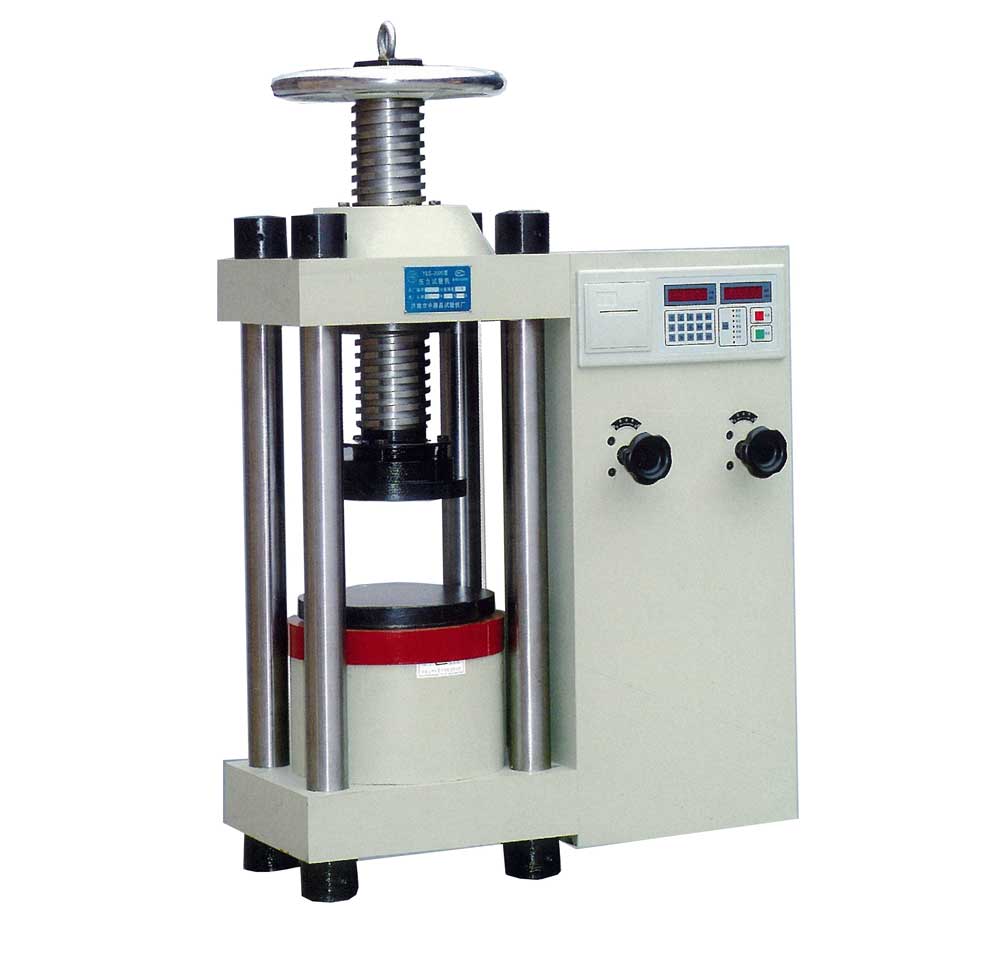

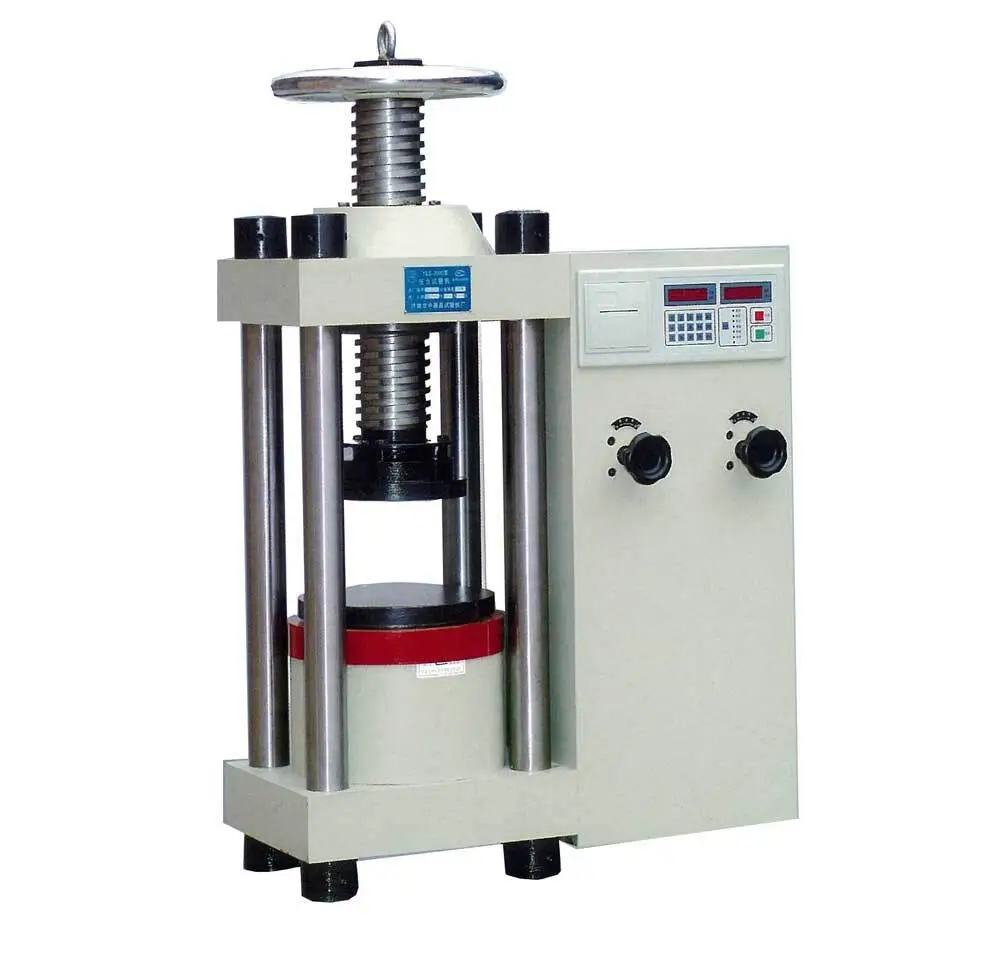

    Auto High Precision Construction Concrete Cement Brick Block Compressive Strength Pressure Test Machine

    This machine mainly used for the compressive strength test to brick,block, stone, cement, concrete materials,

     which can also be used to other materials compressive performance tests.

    The machine adopts hydraulic add load, electronic force measurement, with load digital display, add load rate

     display, and keep the maximum load value, overload protection and power outages data keep etc.





    Technical Parameters



    Mode

    YES-1000

    YES-2000

    YES-300

    Max. testing power

    1000KN

    2000KN

    3000KN

    Measuring range

    0-1000KN

    0-2000KN

    0-3000KN

    Relative indication error

    ±1%

    ±1%

    ±1%

    Size of the bearing plate

    300*250mm

    320*260mm

    370*370mm

    Max. distance between the up and down bearing plates

    80-320

    80-320

    80-320

    Max. piston stroke

    20mm

    20mm

    50mm

    Pressure of the hydraulic pump

    40mpa

    40mpa

    40mpa

    Power

    AC 220V 50HZ

    AC 220V 50HZ

    AC 220V 50HZ
