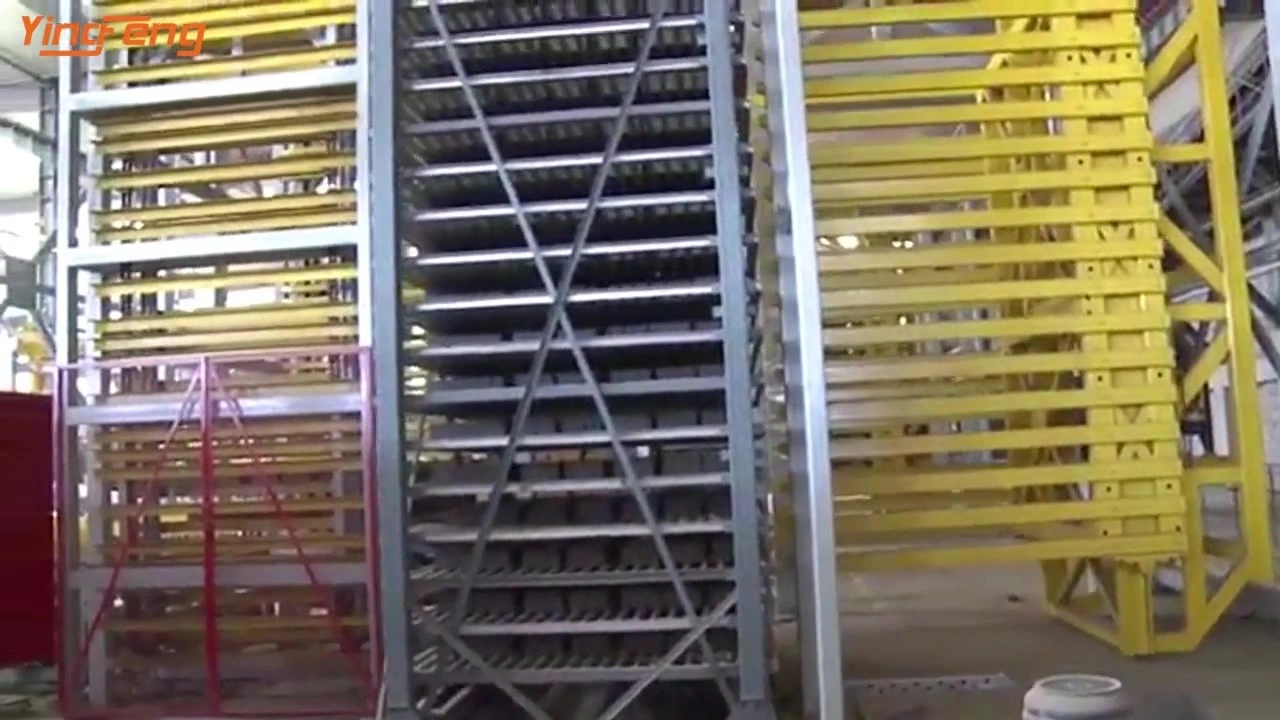

Automatic Clay Brick Block Rack Loading and Unloading System
Automatic Clay Brick Block Rack Loading and Unloading System.
The twice loading automation system is the key equipment for the production of high-grade wall materials automation.
I. Structural Features:
- Channel-type tunnel structure with a single-layer track inside.
- Hot air is supplied by dedicated heat sources (such as kiln waste heat, hot air furnaces) and blown uniformly along the tunnel direction through fans.
- Brick green bodies advance at a constant speed on kiln cars, sequentially undergoing preheating, constant-temperature drying, and cooling stages
II. Process Features:
- Due to the reciprocating operation of the carriage, drying time is more flexible, making it suitable for various types of green bodies.
- Hot air circulation is utilized, resulting in relatively lower energy consumption.
- Better drying uniformity, especially suitable for cases with higher moisture content in wet green bodies or thicker/heavier green bodies.
III. Applicability:
- More suitable for brick factories with larger production volumes and diversified product ranges.
- The investment cost and control system requirements are higher than those of through-the-wall systems.
The twice loading automation system is the key equipment for the production of high-grade wall materials automation, and it is also the equipment which is widely used in the production of high-grade wall materials in developed countries. This system adheres to the design idea of COSMEC Italy, which owns advanced technology, high degree of automation level and high stability. The system consists of green brick cutting, grouping and loading on pallet, pallet transfer, pallet temporary storage, pallet loading and unloading, dry brick unloading from pallet, grouping, spacing and setting etc. This entire system is controlled by high-end PLC, which links each intelligent unit through PROFIBUS, and achieves the automatic operation of data setting or adjustment through industrial computer. This system is suitable for the production of both various common wall materials and high-grade wall materials.
