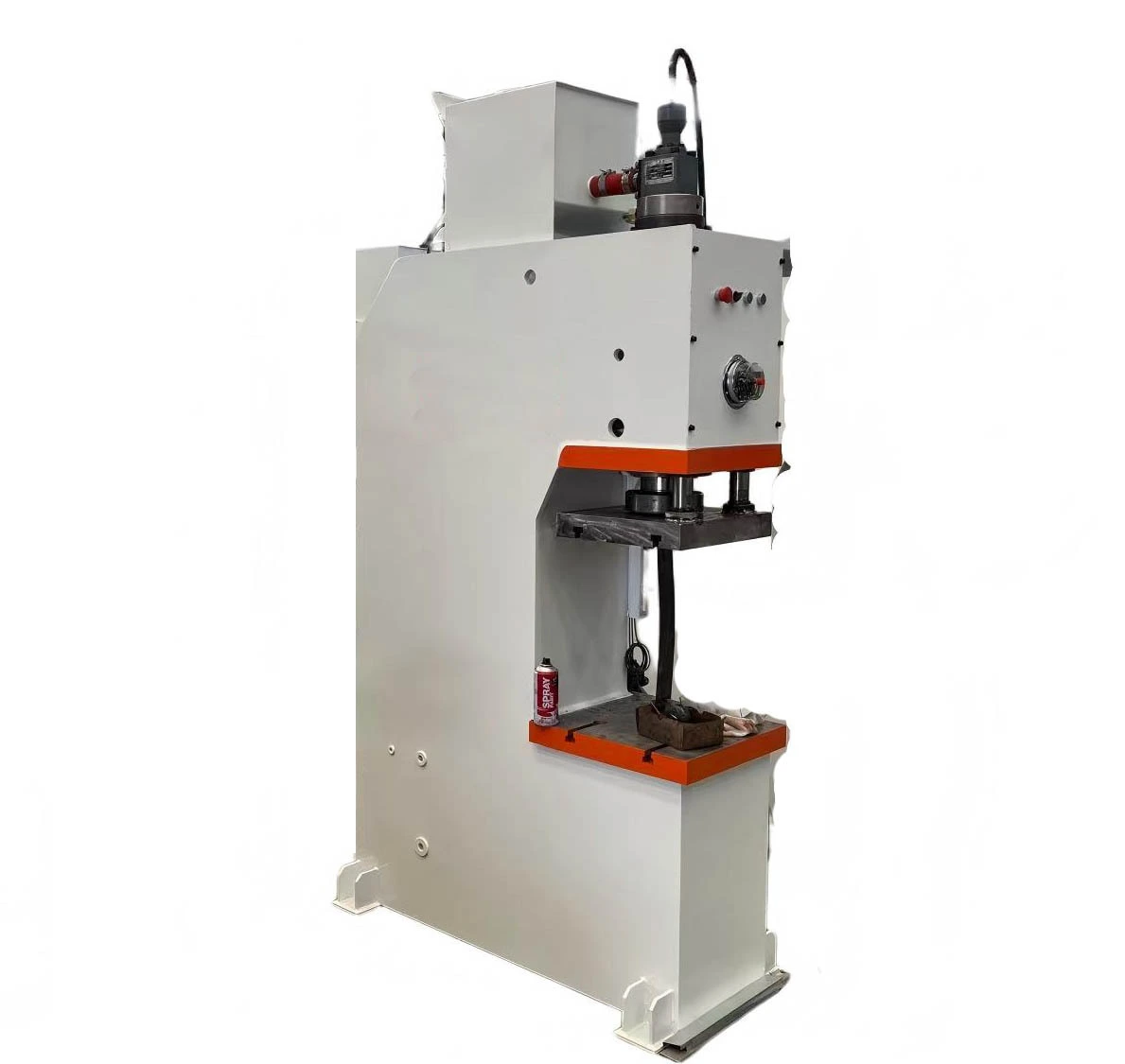

Automatic hydraulic clay roof tile press machine

Our roofing tile forming machine is highly adaptable for manufacturing various multi‑shape, multi‑specification roofing tiles. It supports flexible, high‑quality and high‑efficiency tile production. The 2W model delivers double the production capacity compared with the 1W model, catering to different‑scale production demands.

This production line integrates eight interlinked functional procedures into one complete unit. It realizes full‑process automatic production covering from the post‑extrusion stage to pre‑drying stage. Human‑operation errors are effectively eliminated to keep stable product quality.

Equipped with unique patented reciprocating up‑down crank arm forming mechanism, the machine enables precise control over molding pressure. It brings prominent cost‑performance benefits for mold application and routine maintenance, lowering your overall operation costs.

About tile drying ,there are three solutions:

1. By natural drying, workers put tiles on the shelf to dry naturally.

2. You can use chamber dryer to dry tiles , workers put tiles on the dryer cars, then dryer cars push into dryer to dry, the drying photo is as bellowing:

3. The third drying way, is to use the roller kiln to to tiles automatically, the advantage is using less labors, but investment is much higher than the drying chamber

After drying, the tiles can be fired in local low cost kiln like hoffman kiln or shuttle kiln, but can also fire in our roller kiln.

Technical Parameters

Type	Dimension LxWxH (mm)	Working Table LxW (mm)	Working Frequency (1/min)	Pieces Per Min (pcs/min)	Pressure Stroke (mm)	Max Press Force (kn)	Motor Power (kw)	Weight (kg)
1W	7,330 x 1,290 x 2,710	550 × 380	10~12	10~12	250	1,000	21.75	5,000
2W	7,740 x 2,220 x 3,300	1,640 × 865	10~12	20~24	250	2,400	31.87	11,000

Clay Tile Sample
