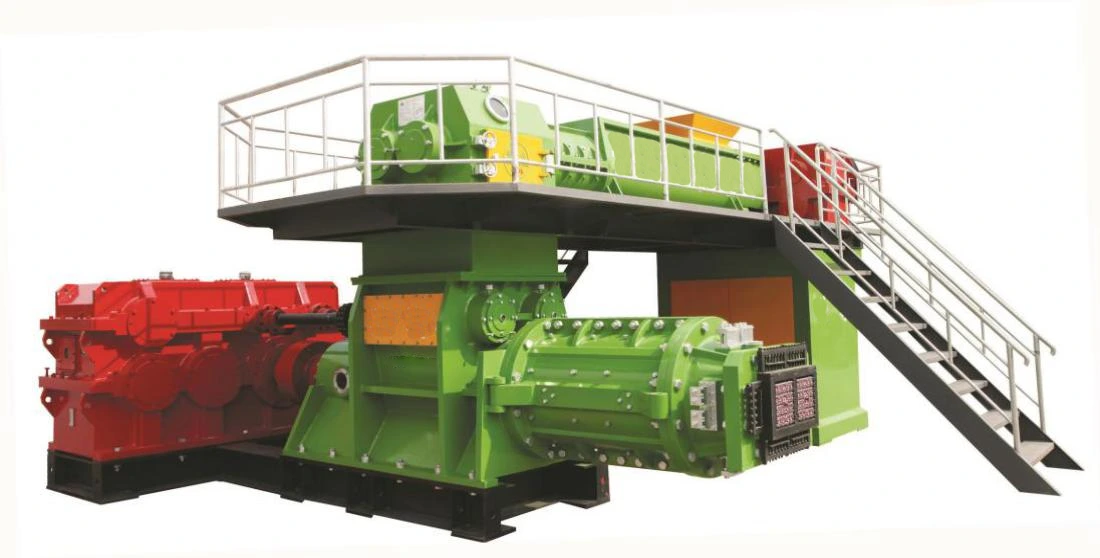

JKY60 75 90 120 Big Model Double stage Vacuum Extruder brick making machine
JKY60 75 90 120 Big Model Double stage Vacuum Extruder brick making machine is with high vacuum pressure suitable for once stacking system
JKY series red brick making machine are our advanced twin-stage vacuum extruders which draw advanced experience from the developed. and domestic technology .
It is suitable for big factory and those who have high demand on brick quality.
They are mainly made of high quality steel with features of reasonable structure, sturdy and durability.
The machine’s axles, gear and other important spare parts which are made by carbon steel and alloy steel through modulation or quenches heat treatment procession so as to extend the service life.
Advantages:
1.Strong applicability,high efficiency;
2.High productivity;
3.Labor saving;
4.Suitable for various materials.
Reducer
The auger is made of high-chromium material. Its front section can produce 20 million fired bricks, and the rear section can reach 40 million fired bricks over its service life. It features high load capacity to withstand pressures under both soft and stiff extrusion conditions. The parallel-shaft reducer adopts case-hardened and ground helical gears, guaranteeing stable transmission, low noise operation and long service life.
Different types of augers are available to adapt for varying clay requirements and shaping conditions:
1. Highly wear resistant chromium alloy
2. Steel alloys with chromium or tungsten carbides resurfacing
3. Steel alloy
The whole Magnabloc extruder range offers alternatives for cylindrical,conical or extra-conical auger configurations to better adapt for any product need,type of clay and shaping requirements.
Technical Parameters：
| Model | Capacity Up to (t/h) |
Auger diameter (mm) |
Extruding pressure (MPA) |
Production Line Power (KW) |
Molding moisture content |
| JKY45 | 32.5 | 450 | 4 | 45/110 | 14-16% |
| JKY50 | 40 | 500 | 4 | 75/160 | 14-16% |
| JKY55 | 45 | 550 | 4 | 75/200 | 14-16% |
| JKY60 | 50 | 600 | 4 | 110/280 | 14-16% |
| JKY75 | 70 | 700 | 4 | 160/355 | 14-16% |
