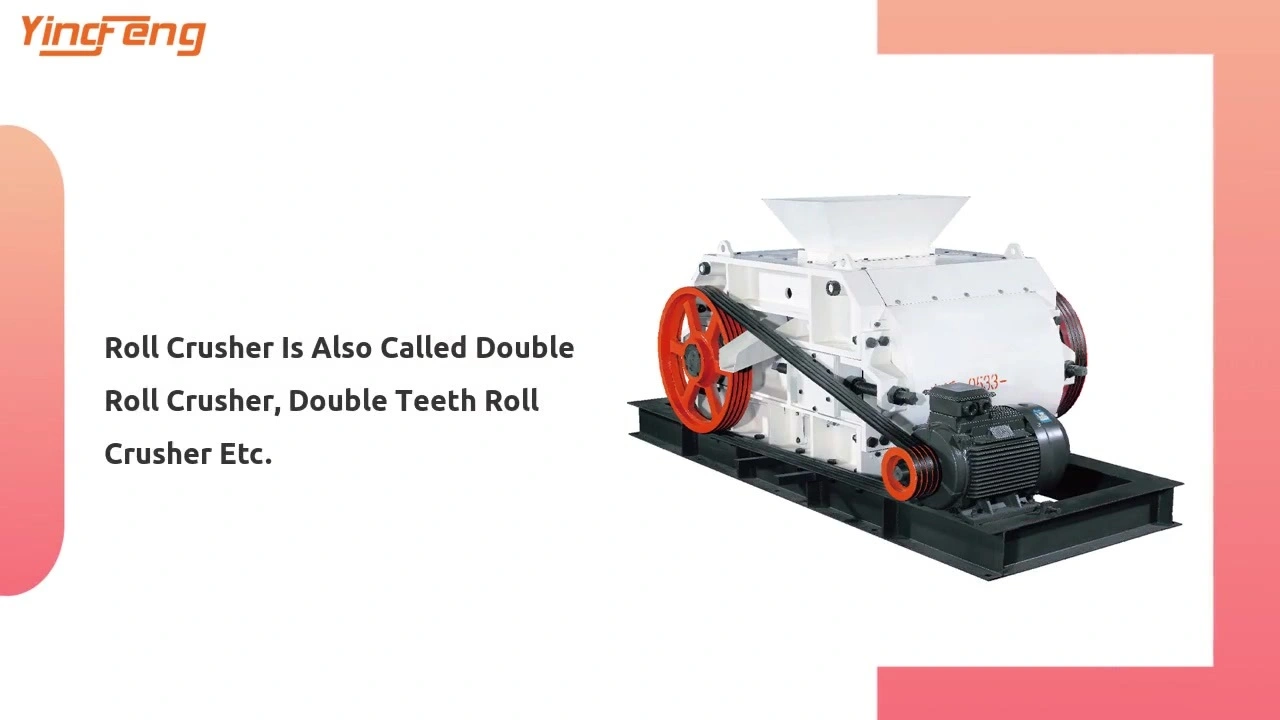

Smooth Toothed Alloy Fine Double Roller Crusher
Roller crusher is also called double roller crusher, double teeth roll crusher etc.
Technical parameter
Model | Roller Width | Capacity | Power | Dimensions |
GS70*50 | 400mm | 15-25t | 18.5+18.5kw | 2940*1430*1440mm |
GS80*60 | 600mm | 25-35t | 22+22kw | 3150*1700*1520mm |
GS100*80 | 800mm | 30-60t | 45+45kw | 4200*1800*1810mm |
GS120*100 | 1000mm | 40-90t | 110+90kw | 6480*2090*2200mm |
GS140*120 | 1200mm | 70-130t | 132+110kw | 7850*2870*2800mm |
Roller crusher is also called double roller crusher, double teeth roll crusher etc. The surface of roller crusher are made of high manganese steel, which can stand up to heat treatment. Double roller crusher is suitable for rough and intermediate crushing of brittle materials in such industries as cement, chemical industry, electric power, mine, building materials and metallurgy. The grain size of the input material is large, the particle size of the output product can be controlled, and it is possible to effectively destroy the material whose compressive strength is less than 160 MPa. The roller body adopts medium-manganese nodular cast iron .Hardness value may reach HRC60~62°.
