Yingfeng Machinery - JS500 JS750 Portable Small Electric Self Loading Cement Concrete Pan Mixing Mixers Machine Prices For Sale Cement Block Making Machine
Zhengzhou Yingfeng Machinery Co., Ltd. relying on years of market experience and strong scientific research technology, successfully developed JS500 JS750 Portable Small Electric Self Loading Cement Concrete Pan Mixing Mixers Machine Prices For Sale. We pride ourselves on our personalized and efficient service. Research and development are the pillars on which the future of our company rests. Zhengzhou Yingfeng Machinery Co., Ltd. will put more emphasis on improving our R&D strength in the future for developing more creative and competitive new products.
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction works | Showroom Location: | Russia, South Africa, Ukraine, Uzbekistan, Tajikistan, Japan |
| Condition: | New | Place of Origin: | Henan, China |
| Brand Name: | Yingfeng | Motor Power: | 24 |
| Mixing Power: | 18.5 kw | Charging Capacity: | 800L |
| Reclaiming capacity: | 500 L | Speed of Mixing Drum: | 26r/min |
| Water Supply Mode: | pump | Working Cycle Period: | 30 |
| Discharge Way: | auto | Outline Dimension: | 4900*2900 *4200 |
| Warranty: | 3 years | UNIQUE SELLING POINT: | Fully hydraulic system |
| Productivity: | 25cbm/hour | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Marketing Type: | New Product 2020 |
| Warranty of core components: | 3 years | Core Components: | Bearing, Gear, Gearbox |
| Weight (KG): | 3000 kg | After Warranty Service1: | Video technical support |
| After Warranty Service2: | Online support | After Warranty Service3: | Spare parts |
| After Warranty Service4: | Field maintenance and repair service | Local Service Location1: | Argentina |
| Local Service Location2: | South Korea | Local Service Location3: | Chile |
| Local Service Location4: | Kazakhstan | Local Service Location5: | Kyrgyzstan |
| After-sales Service Provided1: | Video technical support |

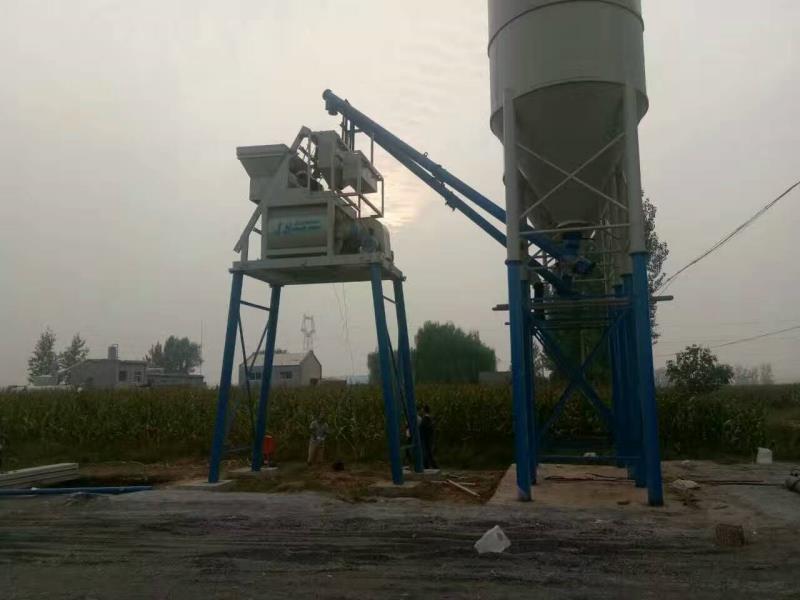

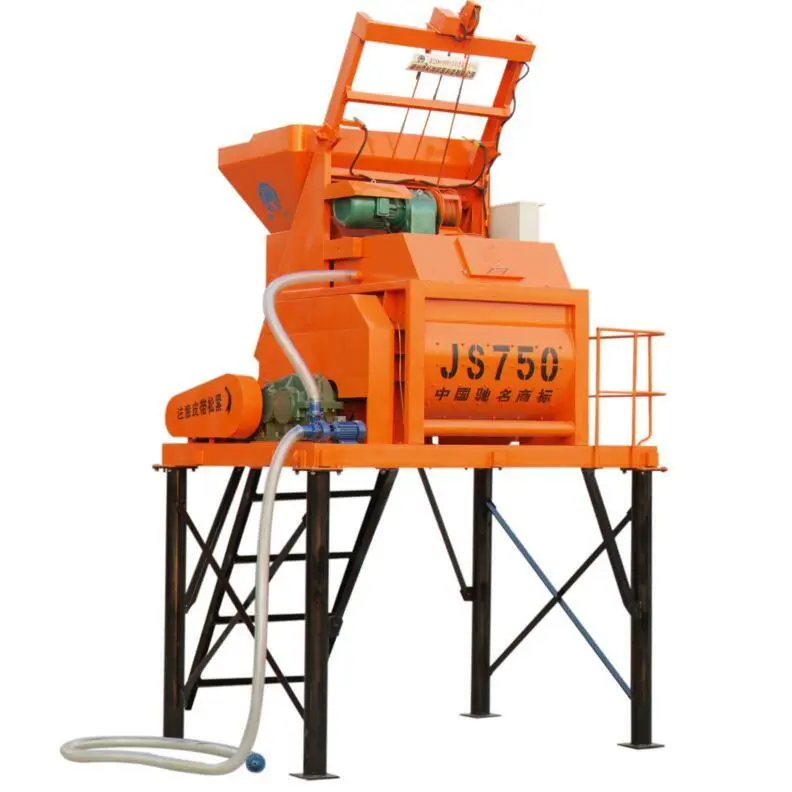

JS Series Concrete Mixer is twin shaft compulsory concrete mixer. The common used models include JS500, JS750, JS1000, JS1500, JS2000 and JS3000. It cannot only work independently, but also be applied, together with concrete batching machine, in concrete batching plant. JS Series Concrete Mixer has such advantages as reasonable and compact structure, outstanding mixing quality, high mixing efficiency, low energy consumption and long service life.
| Model | JS500 | JS750 | JS1000 | JS1500 | JS2000 | JS3000 | |
| Discharging Volume (L) | 500 | 750 | 1000 | 1500 | 2000 | 3000 | |
| Charging Volume (L) | 800 | 1200 | 1600 | 2400 | 3200 | 4800 | |
| Capacity (m3/h) | ≥25 | ≥37.5 | ≥50 | ≥75 | ≥100 | ≥150 | |
| Max. Aggregate Size (mm) | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 | |
| Discharge Height (mm) | 1500 | 1500/2700/3800 | 2700/3800 | 3800/4200 | 3800/4200 | 3800/4200 | |
| Mixing Blade |
Speed (r/min) | 26 | 26 | 25 | 25 | 25 | 25 |
| Quantity | 2*7 | 2*7 | 2*8 | 2*6 | 2*8 | 2*10 | |
| Mixing Motor |
Model | Y180M-4 | Y200L-4 | Y225S-4 | Y225M-4 | Y250M-6 | Y280M-6 |
| Power (kW) | 18.5 | 30 | 37 | 30*2 | 37*2 | 55*2 | |
| Hoist Motor |
Model | YEZ132S-4 | YEZ132M-4 | YEZ160S-4 | YEZ180M-4 | YES80L-4 | |
| Power (kW) | 5.5 | 7.5 | 11 | 18.5 | 22 | ||
| Water Pump Motor |
Model | 50DWB20-8A | 65DWB35-5 | KQW65-100I | KQW65-100I | CK65/20L | CK80/50L |
| Power (kW) | 1.1 | 1.1 | 2.2 | 3 | 4 | 5.5 | |
| Hopper Lifting Speed (m/min) |
18 | 18 | 18 | 20 | 20 | ||
| Overall Dimension(L*W*H) (mm*mm*mm) |
4900*2900 *4200 | 5300*3200 *4700 | 8800*3300 *8100 | 9500*4000 *8600 | 10500*4500 *9200 | ||
Q: The clay brick need to fire or not ?
A: Extruding clay bricks need to fire to be harden ,if you do not want to fire, you can consider our interlocking brick machine or concrete block making machine
Q:How long is the warranty of the brick machine ?
A: 3 years excluding the easy wear parts.Spare parts is recommended to keep at least one year in case of emergency
Q:How much USD i can open one brick factory ?
A: Different capacity brick factory, investment is not same. We can provide you budget list once you send enquiry to us
