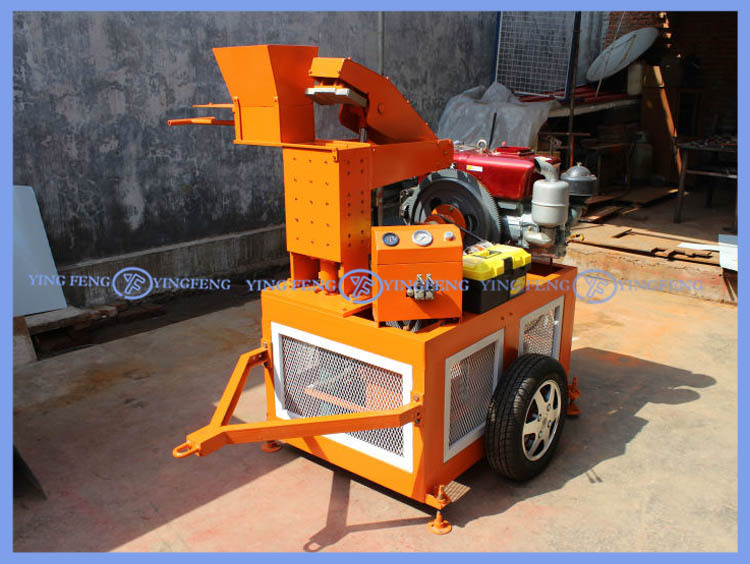

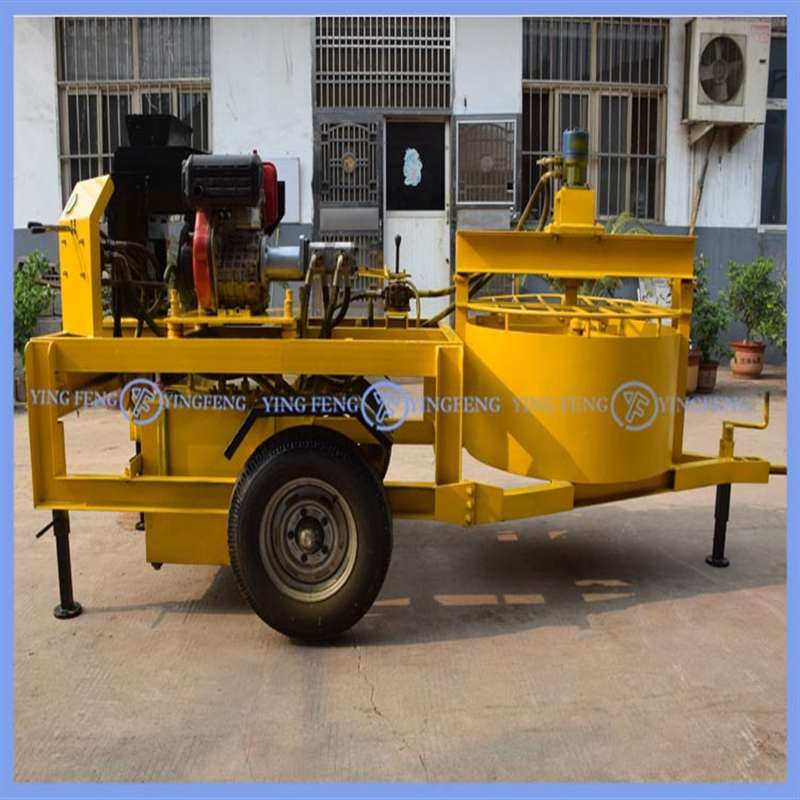

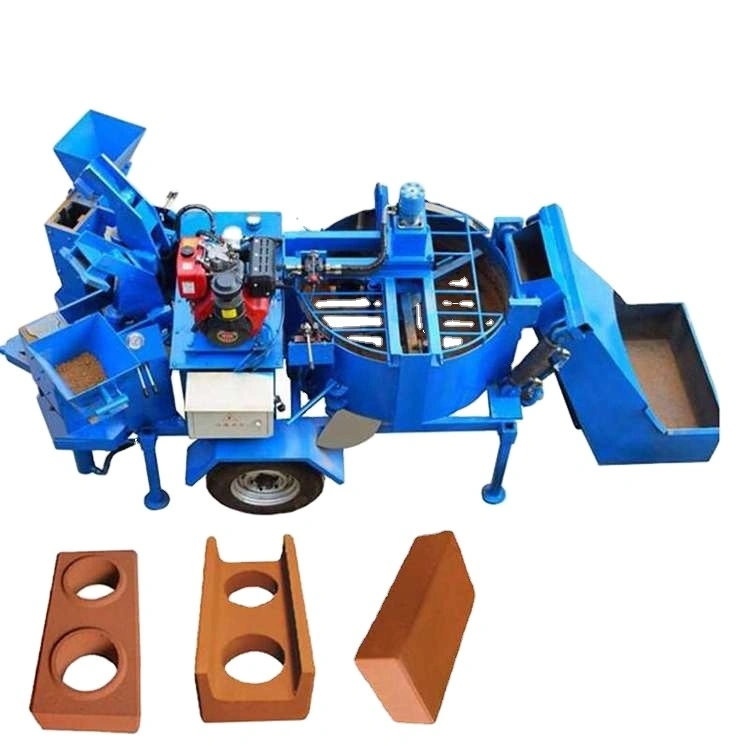

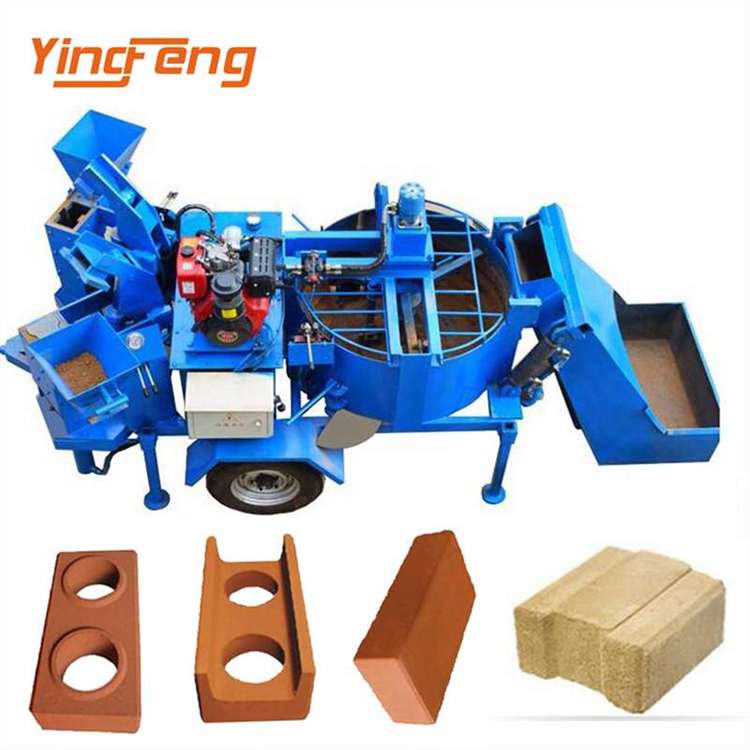

Yingfeng Machinery - House Bricks Hydraulic Pressure Automatic Soil Interlocking Brick Making Machine Interlock brick press machine
The product is made by technologies, some of which are developed on our own while others are learned from other famous brands.In the fields like Brick Making Machinery, our product is widely used for its versatility and guaranteed quality. Since launched, House Bricks Hydraulic Pressure Automatic Soil Interlocking Brick Making Machine has been receiving mounting acclaim from customers. Zhengzhou Yingfeng Machinery Co., Ltd. will always stick to the business principle of 'quality first, customers foremost' and strive towards building an even more competitive and capable company aiming for an even better future.
| Applicable Industries: | Building Material Shops, Construction works | Showroom Location: | Peru, Sri Lanka, South Africa, Uzbekistan |
| Condition: | New | Type: | Interlock Block Making Machine |
| Brick Raw Material: | Clay | Processing: | Brick Molding Machine |
| Method: | Hydraulic pressure | Automatic: | Yes |
| Production Capacity (Pieces/8 hours): | 1440-1760 pcs / 8 hours | Place of Origin: | Henan, China |
| Brand Name: | Yingfeng | Voltage: | 220-440v |
| Dimension(L*W*H): | 1200*900*1200mm | Warranty: | 3 years |

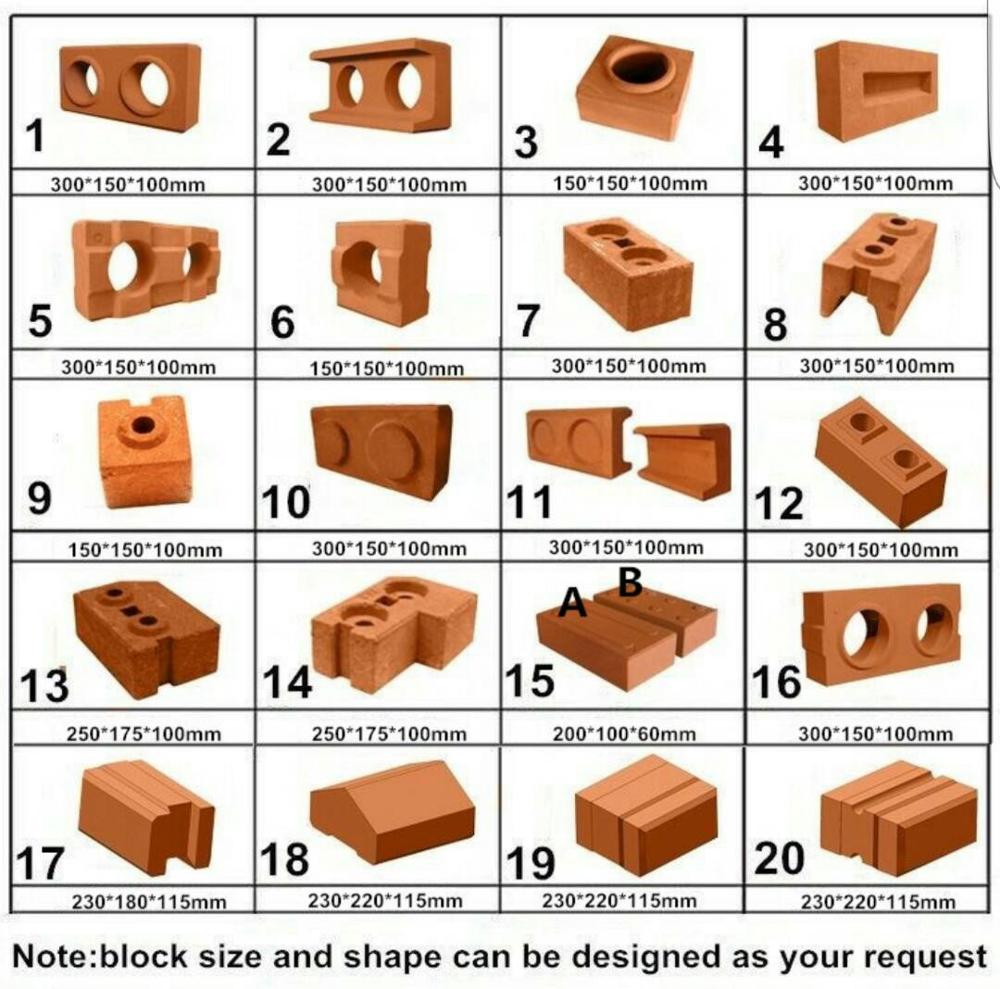

| Key Selling Points: | Easy to Operate | Brick size: | 300*150*100 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 230*220*115 mm |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 3 years |
| Core Components: | PLC, Gear, Bearing, Gearbox | Weight (KG): | 1200 kg |
| After-sales Service Provided: | Engineers available to service machinery overseas | Product Name: | Eco Brava Interlocking Brick Block Making Machines Price |
| Pressure: | 18-22MPA | Operation type: | Semi-auto |
| Forming way: | Hydraulic press | Brick Raw material: | Clay,soil ,cement,etc |
| Pallet: | No need | Color: | Customized |
| Brick type: | interlocking or cement brick | PH: | 8 |
Section width | Capacity (pcs/day) |
5.6 m | 70,000~100,000 (Standard brick ) |
6.8 m | 100,000~150,000 (Standard brick ) |
10.8 m | 200,000~250,000 (Standard brick ) |
13 m | 300,000~350,000 (Standard brick ) |
15.6 m | 500,000~600,000 (Standard brick ) |
Rotary tunnel kiln is improved and upgraded from traditional tunnel kiln.
Its biggest characteristic is the adobes stay still while the body of rotary kiln moves.
Kiln body are all steel structure,the circular orbit,once upon a time,in turn, divided into the dry period, preheating section, after roasting,cooling,heat preservation paragraphs. Machine and kiln body synthetic operation,iin order to characterize code. Rotation movement of the kiln body in orbit intermittent forward, front eat bricks, back end spit finished bricks,in turn ,drying, preheating,roasting,cooling,the whole process of bricks.
Fuel:natural gas,coal,diesel oil,etc.
