Yingfeng Machinery - Electric Mini Small Big Lab Water Circulate Liquid Ring Oil Free Air Rotary Vane Vacuum Pump Rotary vane vacuum pump
Zhengzhou Yingfeng Machinery Co., Ltd. has been focusing on developing products regularly, of which Brick making project is the newest. It is the newest series of our company and is expected to surprise you. Now it is easy for you to find and get the best quality of Electric Mini Small Big Lab Water Circulate Liquid Ring Oil Free Air Rotary Vane Vacuum Pump at prices that fit your pocket. Zhengzhou Yingfeng Machinery Co., Ltd. will continue to adopt scientific and advanced marketing strategies to focus on market expansion, forming a complete sales network across the world. Moreover, we will pay more attention to the talents gathering, ensuring innovative and competitive wisdom is distilled for the long-term development of our company.
| Warranty: | 1 years | Customized support: | OEM |
| Brand Name: | Yingfeng | Model Number: | JKX-040 |
| Place of Origin: | Henan, China | Application: | Industrial Boilers, Mining industry |
| Horsepower: | 0.75 KW | Power Source: | Electric |
| Pressure: | 25 | Structure: | Gear Pump |
| Cable Length: | Standard | Outlet Size: | 10cm |
| Voltage: | 380v | Power: | 7.5kw |
| Pumping rate: | 40 cbm per hour | rotating speed: | 1440 r/min |
| Certification: | ETL |
Water Ring Vacuum Pump Product Introduction:
2BV series water ring vacuum pump is a single-stage pump with integral structure. The shaft seal adopts mechanical seal and has the characteristics of simple structure, simple installation and no oil.
It is suitable for removing gas and moist steam, whose inspiratory pressure can reach 33mbar absolute pressure (97% vacuum degree).
When it is operated for a long time under the condition that the suction pressure is lower than 80 mbar, the cavitation protection tube should be connected to protect the pump.
Equipped with atmospheric injector, it can absorb air pressure up to 10 mbar.The injector can be directly installed on the suction port. When used as a compressor, the pressure of vacuum pump can be up to 0.26MPa (absolute pressure).
Technical Parameters:
2BV Series vacuum pump
|
Model |
Maximum volume |
Water consumption(L/min) |
Rotating speed (rpm) |
Power (kw) |
Weight (kg) |
|
2060 |
0.45 |
2 |
2880 |
1.1 |
20 |
|
2061 |
0.87 |
2 |
2880 |
1.5 |
22 |
|
2070 |
1.33 |
2.5 |
2880 |
2.35 |
31 |
|
2071 |
1.83 |
4.2 |
2880 |
3.85 |
42 |
|
5110 |
2.75 |
7 |
1450 |
4 |
78 |
|
5111 |
3.83 |
8.5 |
1450 |
5.5 |
100 |
|
5121 |
4.68 |
10 |
1450 |
7.5 |
145 |
|
5131 |
6.68 |
15 |
1450 |
11 |
165 |
|
5161 |
8.3 |
20 |
970 |
15 |
252 |
2BE 202 Series vacuum pump
|
Model |
Rotating speed |
Shaft power |
Motor Power |
Maximum pumping rate (m3/min) |
Weight |
|
2BE 202 |
970 |
17 |
22 |
12.7 |
875 |
|
790 |
14 |
18.5 |
9.8 |
850 |
|
|
880 |
16 |
18.5 |
11.2 |
850 |
|
|
1100 |
22 |
30 |
14.2 |
940 |
|
|
1170 |
25 |
30 |
14.8 |
945 |
|
|
1300 |
30 |
37 |
15.8 |
995 |

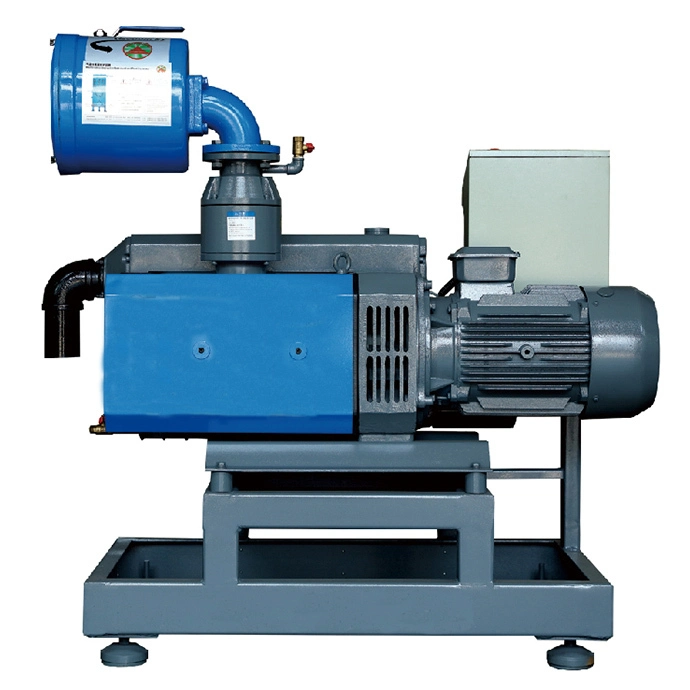

Rotary Vane Vacuum Pump Product Introduction:
JKX series introduces, digests and absorbs the latest international vacuum production technology. The key components use imported materials and brands, and the overall performance meets international standards.
Advantages:
continuous operation, high pumping rate, high vacuum, low working noise, low power, no water cooling, strong steam extraction, no fumes, compact structure, scientific and reasonable design, light and easy to install, and in line with the country. Environmentally friendly, energy-efficient emissions.

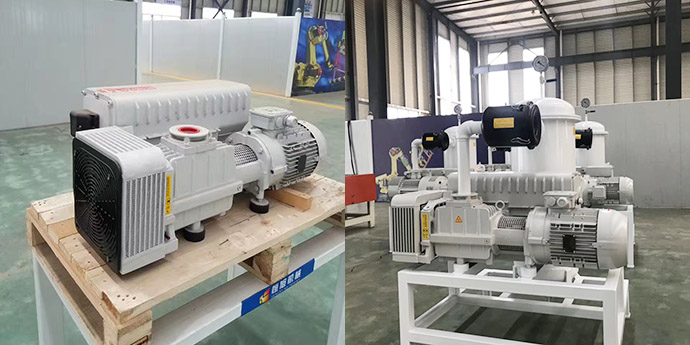

Product Show:
|
Model |
JKX -010 |
JKX -020 |
JKX -040 |
JKX -063 |
JKX -080 |
JKX -100 |
JKX -160 |
JKX -202 |
JKX -250 |
JKX -302 |
|
Name |
||||||||||
|
Pumping rate |
10 |
20 |
40 |
63 |
80 |
100 |
160 |
200 |
250 |
300 |
|
<(cbm/hour) |
||||||||||
|
Ultimate pressure |
0.1-0.5 |
0.1-0.5 |
0.1-0.5 |
0.1-0.5 |
0.1-0.5 |
0.1-0.5 |
0.1 |
0.1 |
0.1 |
0.1 |
|
(mbar) |
||||||||||
|
Motor power |
0.37 |
0.75 |
1.5 |
1.5/2.2 |
2.2 |
3 |
4 |
4.5 |
5.5 |
7.5 |
|
(kw) |
||||||||||
| Pump rotation speed |
2800 |
2800 |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
|
(r/min) |
||||||||||
|
oil filling amount |
0.5 |
0.5 |
1 |
2 |
2 |
2 |
5 |
5 |
7 |
7 |
|
(L) |
||||||||||
| Intake port size |
G3/4 |
G3/4 |
G1
1/4
|
G1
1/4
|
G1
1/4
|
G1
1/4
|
G2 |
G2 |
G2 |
G2 |
| Wieght |
16 |
19 |
45 |
55 |
60 |
70 |
150 |
150 |
195 |
211 |
|
(Kw) |
