Yingfeng Machinery－More Than 30 Years Experience In Clay Brick Making Machine ,Tunnel Kiln, Rotary Tunnel Kiln.

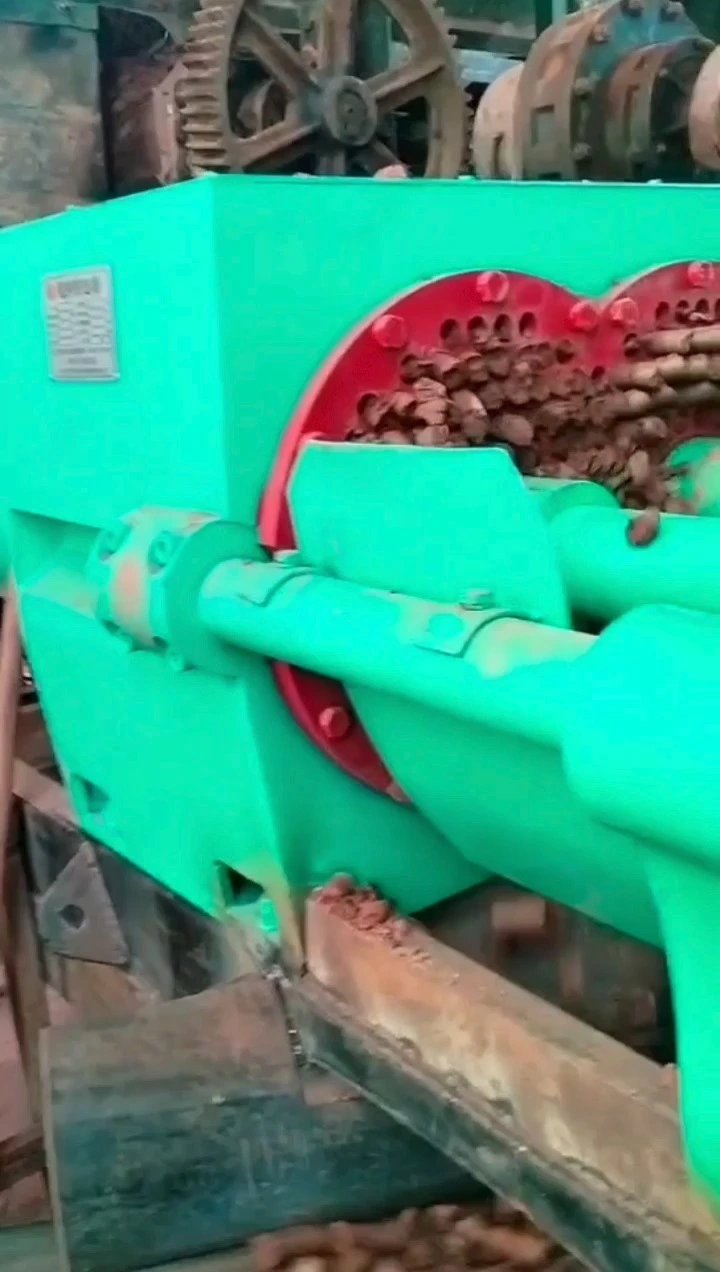

Double Shaft Mixer Granulator for Brick Tile Production 1

Double Shaft Mixer Granulator for Brick Tile Production 2

Double Shaft Mixer Granulator for Brick Tile Production

Name: Double Shaft Mixer Granulator for Brick Tile Production
Uploaded: 2026-04-08T09:41:34+08:00
Description: Specially developed for the thorough mixing, extrusion kneading, and cutting granulation of raw materials in production lines for ceramic bricks and tiles, this technology ensures a uniform and dense distribution of raw material structure. It effectively enhances the forming quality of brick and tile blanks, including improvements in compactness and reductions in internal stress deformation.

Specially developed for the thorough mixing, extrusion kneading, and cutting granulation of raw materials in production lines for ceramic bricks and tiles, this technology ensures a uniform and dense distribution of raw material structure. It effectively enhances the forming quality of brick and tile blanks, including improvements in compactness and reductions in internal stress deformation.

Inquiry

Write a Review

This advanced technology is specially developed for the thorough mixing, extrusion kneading, and cutting granulation of raw materials in production lines for ceramic bricks, tiles and other clay products. It ensures a uniform and dense distribution of raw material structure, effectively improving the forming quality of brick and tile blanks—including enhanced compactness and reduced internal stress deformation.

Built on the mixing structure of a conventional dual-shaft mixer, this equipment retains the original mixing function while adding extrusion, fine cutting and granulation capabilities. Production capacity and operating time can be adjusted via a pneumatic clutch according to specific production requirements. It features a rational structure, convenient operation and reliable performance.

Technical Parameters：

Type	Capacity( m³/h)	Power(kw)	Size(mm)
SJB250X80	15-20	37	35001000680
SJB300X80	20-30	45	43001000700
SJB400X100	30~40	75	57001200850
